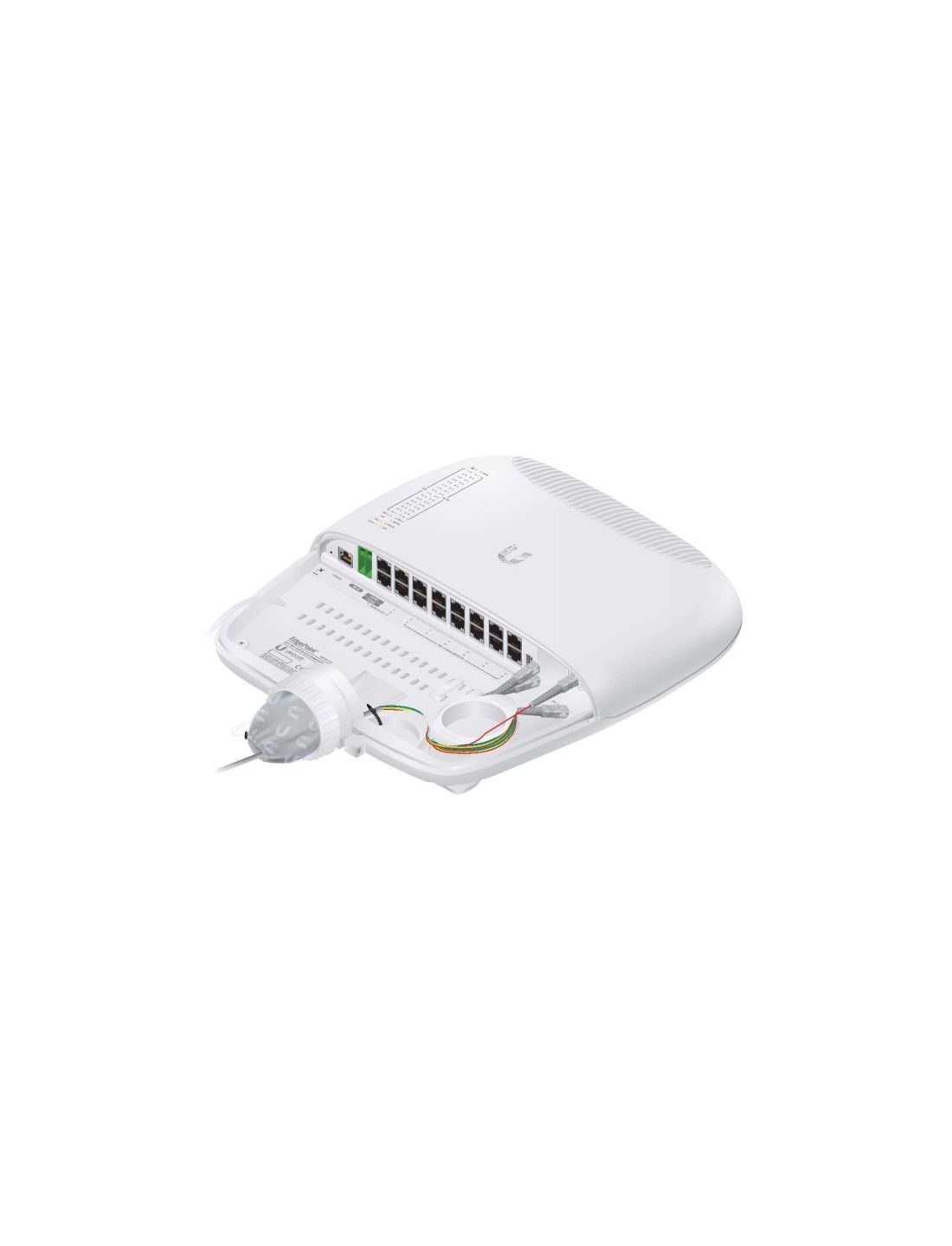

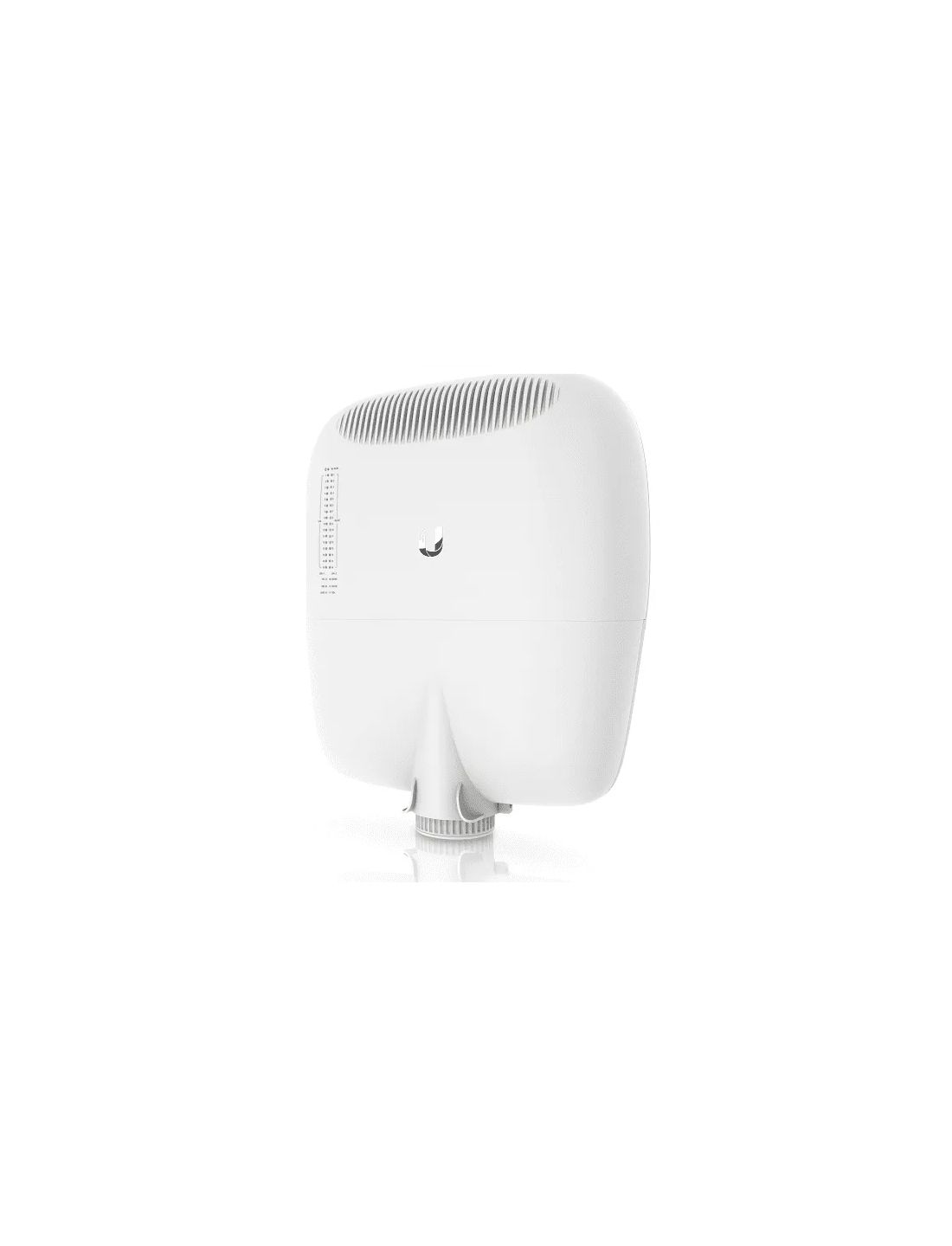

Коммутатор Ubiquiti EP-S16
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Коммутатор, Ubiquiti, EP-S16, EdgePoint S16, Управляемый L2+, 16 портов 10/100/1000 Mbps RJ-45, 2 порто SFP+, 1-RJ45 консоль, Passive PoE output, Passive PoE input, 54V DC, 6A input, Уличный
Основные характеристики
- 16 портов RJ-45, 2 порта 1/10G SFP. RJ-45 serial-порт
- Поддержка PoE (802.3af/at, Passive PoE 24 или 54V, PoE input)
- Всепогодный корпус
- Общая пропускная способность 36 Гбит/с
- Агрегирование каналов
- MSTP/RSTP/STP
- VLAN, приватный VLAN, голосовой VLAN
- DHCP Snooping, IGMP Snooping
- TACACS+, RADIUS, 802.1X, MAC фильтрация, ACL
- Статическая маршрутизация и на основе политик
| Управляемый уровня 2 |
| 16 x 10/100/1000Mbps |
| 2 x 1000/10000Mbps |
| ARM |
| 400 MHz |

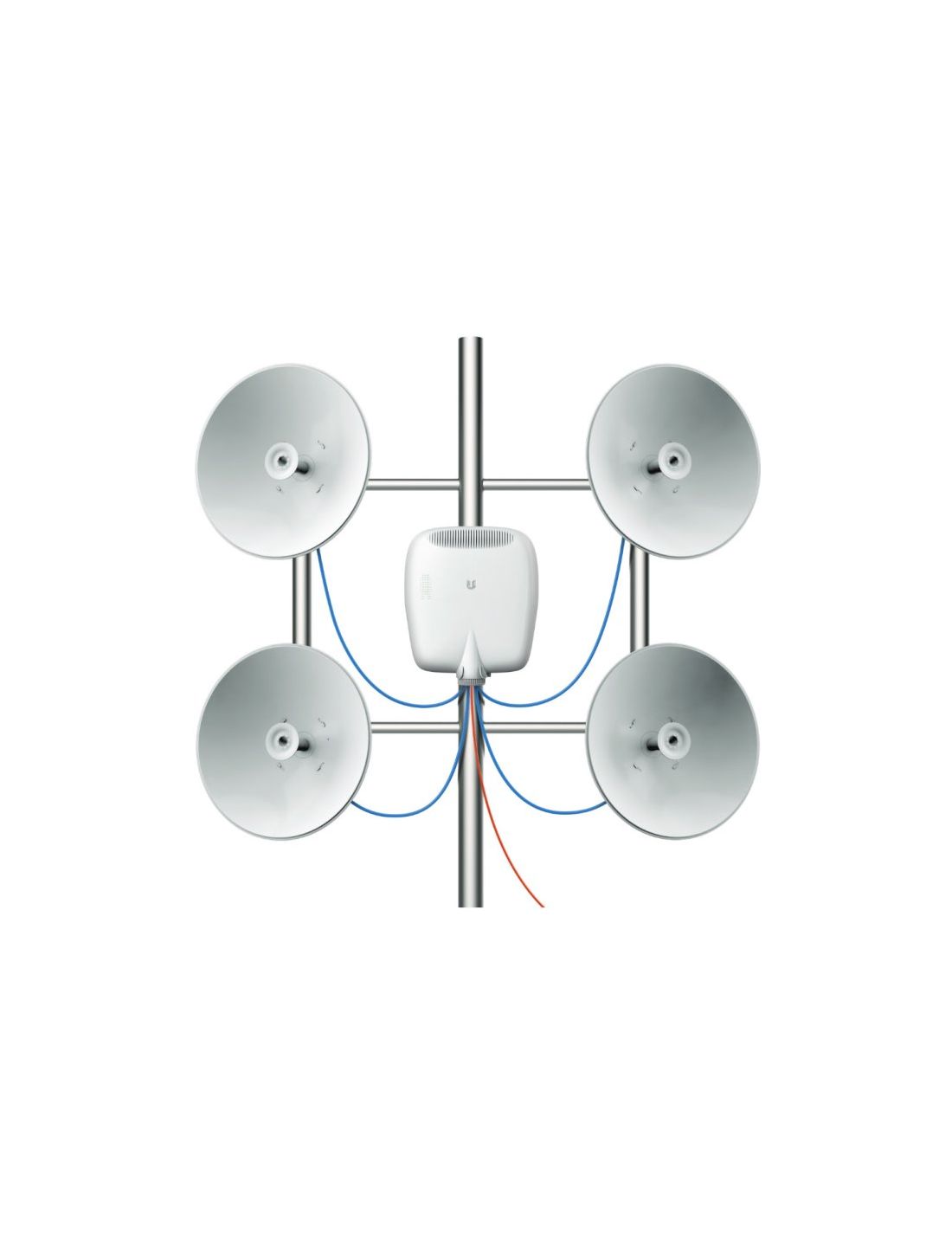

| На мачту |
| 8 k |
| 256 MB |
| 32 MB |
| PoE In, PoE Out |
| PoE In - (2) 54V/1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 and 2 PoE Out - (4) 54V or 24V /1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 to 4 (12) 802.3af/at or 24V/0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, Ports 5 to 16 |
| Access Control Lists (ACLs), Permit/Deny Actions for Inbound IP and Layer 2 Traffic Classification Optional ACL Rule Attributes Differentiated Services (DiffServ) Class of Service (CoS) Queue Mapping Configuration |
| минимум 54V / 0.8A (без PoE Out) 54VDC, 6A |
| 3,4 3,8 (с креплением) |
| 10 to 90% Noncondensing |
| макс 40W (без PoE Output) |
| (1) RJ45 Serial Port |
| 326.6x382.7x88.8 мм |
| Power Speed/Link/Activity PoE |
| CE, FCC, IC |
| -20 ... 65 |
| •Broadcast Storm Recovery •Broadcast/Multicast/Unknown Unicast Storm Recovery •DHCP Snooping •IGMP Snooping Querier •Independent VLAN Learning (IVL) Support •Jumbo Ethernet Frame Support •Port MAC Locking •Port Mirroring •Protected Ports •Static MAC Filtering •TACACS+ •Voice VLANs •Unauthenticated VLAN •Internal 802.1X Authentication Server |
| •Static Routing •Policy-Based Routing |
| •ANSI/TIA-1057: LLDP-Media Endpoint Discovery (MED) •IEEE 802.1AB: Link Layer Discovery Protocol (LLDP) •IEEE 802.1D: Spanning Tree Compatibility •IEEE 802.1S: Multiple Spanning Tree Compatibility •IEEE 802.1W: Rapid Spanning Tree Compatibility •IEEE 802.1Q: Virtual LANs with Port-Based VLANs •IEEE 802.1p: Ethernet Priority with User Provisioning and Mapping •IEEE 802.1X: Port-Based Authentication with Guest VLAN Support •IEEE 802.3: 10BASE-T •IEEE 802.3u: 100BASE-T •IEEE 802.3ab: 1000BASE-T •IEEE 802.1ak: Virtual Bridged Local Area Networks - Amendment 07: Multiple Registration Protocol •IEEE 802.3ac: VLAN Tagging •IEEE 802.3ad: Link Aggregation •IEEE 802.3x: Flow Control •IEEE 802.1D-2004: Generic Attribute Registration Protocol: Clause 12 (GARP) •IEEE 802.1D-2004: Dynamic L2 Multicast Registration: Clause 10 (GMRP) •IEEE 802.1Q-2003: Dynamic VLAN Registration: Clause 11.2 (GVRP) •RFC 4541: Considerations for Internet Group Management Protocol (IGMP) Snooping Switches •RFC 5171: Unidirectional Link Detection (UDLD) Protocol |
| •DHCP Server -Maximum Number of Pools: 8 -Maximum Number of Leases (Total): 128 •Routing -Number of Routes: 16 -Number of Routing Interfaces: 15 •VLANs: 255 •MAC Addresses: 8k •MSTP Instances: 4 •LAGs: 6 •ACLs: 100 with 10 Rules per Port •Traffic Classes (Queues): 8 |
| •Web UI •Industry-Standard CLI •IPv6 Management •Password Management •Autoinstall Support for Firmware Images and Configuration Files •SNMP v1, v2, and v3 •SSH 1.5 and 2.0 •SSL 3.0 and TLS 1.0 •Secure Copy (SCP) •Telnet (Multi-Session Support) |
Бренд
Ubiquiti
