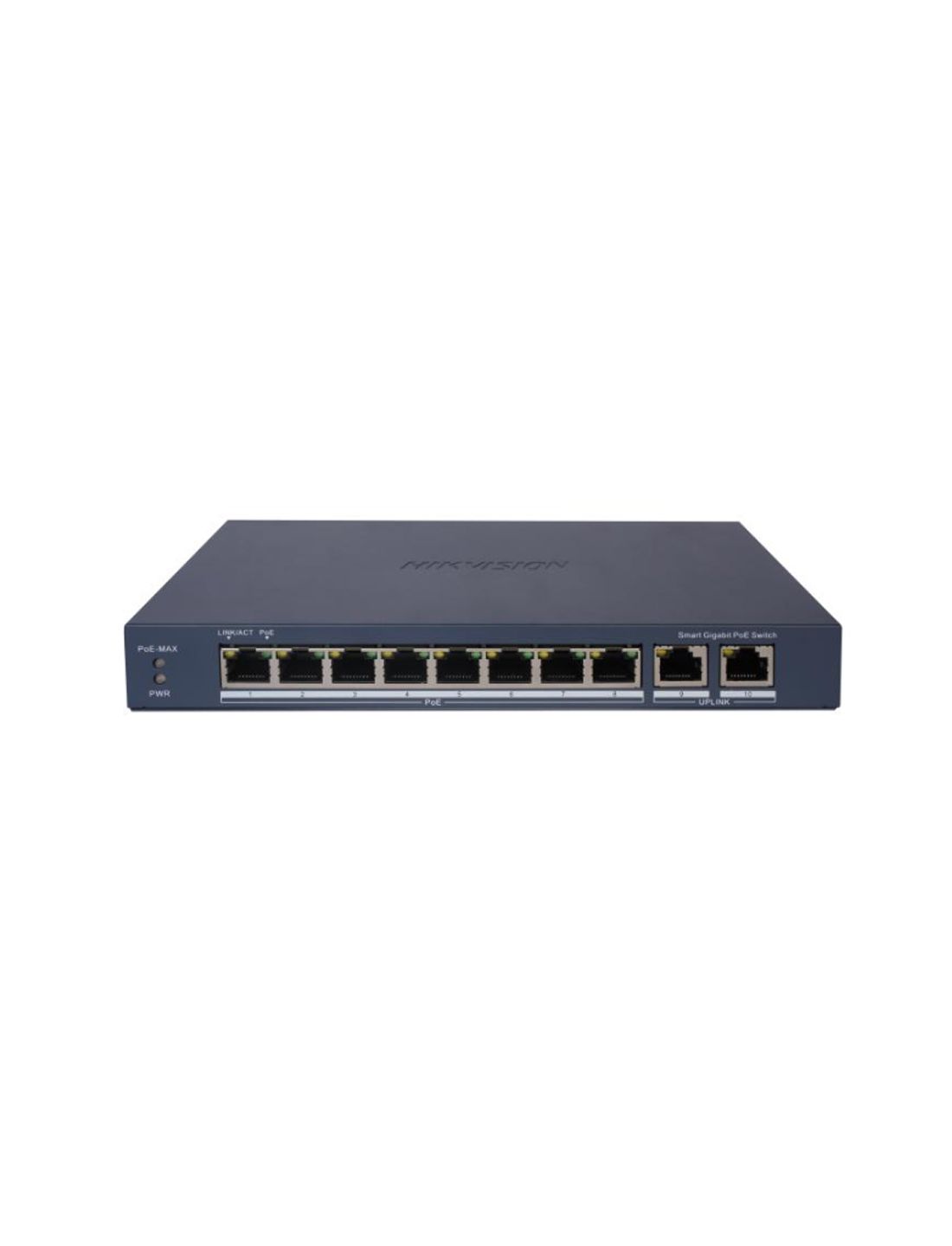

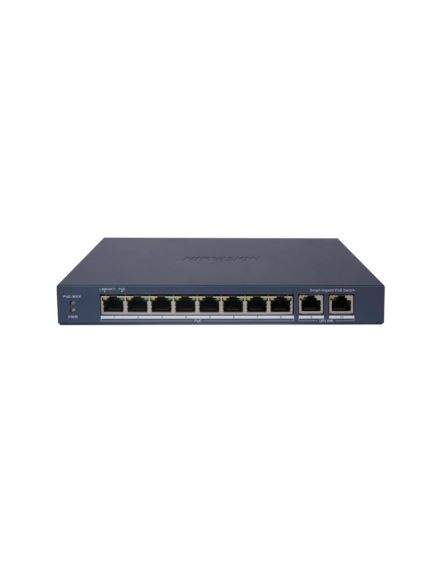

Видеонаблюдение Коммутатор Hikvision DS-3E1510P-EI/M-8P2F
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Коммутатор, Hikvision, DS-3E1510P-EI/M-8P2F, Управляемый L2, 8 x Gigabit RJ45, РоЕ 802.3af/at 80W, 2 x SFP, Настольный, Long Range Ports 1 to 8: up to 300 m.General
ShellMetal material
Net Weight0.54 kg (1.19 lb)
Gross Weight1.08 kg (2.38 lb)
Dimensions (W × H × D)217.6 mm × 27.6 mm × 108.5 mm (8.57'' × 1.09'' × 4.27'')
Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity5% to 95% (no condensation)
Relative Humidity5% to 95% (no condensation)
Power Supply54VDC, 1.6A
Installation ModeDesk-Mounted,Wall-Mounted
Max. Power Consumption86 W
Power Consumption in Idle2.5 W
Surge Protection6 KV
Network Parameters
Ports8 × Gigabit PoE port,2 × Gigabit fiber optical port
MAC Address Table4 K
Switching Capacity20 Gbps
Packet Forwarding Rate14.88 Mpps
Internal Cache1.5 Mbits
PoE Power Supply
PoE StandardIEEE 802.3af,IEEE 802.3at
PoE Power PinEnd-span: 1/2(-), 3/6(+)
PoE PortPoE: Ports 1 to 8
Max. Port Power30 W
ShellMetal material
Net Weight0.54 kg (1.19 lb)
Gross Weight1.08 kg (2.38 lb)
Dimensions (W × H × D)217.6 mm × 27.6 mm × 108.5 mm (8.57'' × 1.09'' × 4.27'')
Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity5% to 95% (no condensation)
Relative Humidity5% to 95% (no condensation)
Power Supply54VDC, 1.6A
Installation ModeDesk-Mounted,Wall-Mounted
Max. Power Consumption86 W
Power Consumption in Idle2.5 W
Surge Protection6 KV
Network Parameters
Ports8 × Gigabit PoE port,2 × Gigabit fiber optical port
MAC Address Table4 K
Switching Capacity20 Gbps
Packet Forwarding Rate14.88 Mpps
Internal Cache1.5 Mbits
PoE Power Supply
PoE StandardIEEE 802.3af,IEEE 802.3at
PoE Power PinEnd-span: 1/2(-), 3/6(+)
PoE PortPoE: Ports 1 to 8
Max. Port Power30 W
Бренд
Hikvision
